KCPL Two-Stage Side Channel Dry Vacuum Pump Achieves a higher degree of vacuum than typical side channel blowers.
KCPL160-V-06A / KCPL200-V-06A
KCPL260-V-06A
- Ultimate Degree of Vacuum
- to 44 kPa
- Motor Output
- to 6.6 kW
- Maximum Flow Rate
- to 305 m3/h
-
Single-Stage -
Two-Stage -
Noise Reduction -
Long Life -
Dry Slide -
Multi Power Source -
CE Conformity -
UL Certified
Features
Can achieve a degree of vacuum higher than typical side channel blowers thanks to its single cylinder two-stage construction.
Two-Stage Air Flow
IE3 Different Voltage Standard Targeted Item
IE3-target high efficiency motor with a 200 to 400 V voltage range.
※ Please contact us regarding UL qualification.

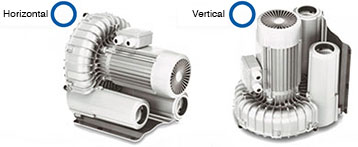

Complete Freedom of Installation Location/Arrangement
Can choose horizontal or vertical applications and installation locations.
Integrated Safety Valve Construction
We've adopted an all-in-one design based upon the main body of the product
Specifications
| Model | Standard Model | ||||
|---|---|---|---|---|---|
| KCPL160-V-06A | KCPL200-V-06A | KCPL260-V-06A | |||
| Flow Rate (50/60 Hz) ※1 | m3/min | 2.7/3.2 | 3.3/3.9 | 4.3/5.1 | |
| m3/h | 160/190 | 195/235 | 260/305 | ||
| Ultimate Degree of Vacuum ※2 | kPa | 41/41 | 44/44 | 41/40 | |
| Operating Noise Level (50/60 Hz) ※3 | dB | 70/70 | 71/73 | 70/70 | |
| Piping Connection Size | dB | G2 1/2 | G3 | G3 | |
| Mass | kg | 46 | 57 | 67 | |
| Motor | Rated Power Supply @ Frequency ※4 | Three-phase 200/350 V @ 50 Hz, 200V/220V/350V/400V-60Hz | |||
| Output / No. of Poles × No. of Units | 3.0/3.6kW·2P | 4.0/4.8kW·2P | 5.5/6.6kW·2P | ||
| Specifications | IE3 class high efficiency motor | ||||
| Working Environment | Installation Location | Indoors | |||
| Permissible Ambient Temp ※5 | ℃ | -10 to 40 | |||
| Permissible Ambient Humidity | 65 ±20% | ||||
| Operable Elevation ※6 | m | Max. or lower | |||
| Included Parts | Safety Valve | ||||
| Optional Equipment | Intake Filter / Air Muffler (Exhaust Silencer) | ||||
- The flow rate is a theoretical value based on the designed pumping capacity. See the Power Graphs for the actual flow rate.
- Pressures indicated are when operating the pump under 1 ATM. (Correction required depending on installed elevation.)
- Operating noise is measured at 25 kPa, and is not a guaranteed value.
- The allowable voltage fluctuation is ±10% of the rated voltage.
- Please consult ORION regarding operation at altitudes higher than 800 m.
External Dimensions (Units: mm)
Power Graph
KCPL160-V-06A
KCPL200-V-06A
KCPL260-V-06A
Accessory (Sold Separately)
| Applicable Model | Intake Filter | Air Muffler (Intake Silencer) |
|---|---|---|
| KCPL160-V | VF150-01/02 | NPP40 |
| KCPL200-V | VF250-01/02 | NPO50 |
| KCPL260-V | VF500-01/02 | NPO65 |
- In order to remove foreign matter, always install and operate an intake filter (one of the available accessories) with the Side Channel Blower.
Failure to operate with an intake filter can lead to trouble from particulate clogging within the close tolerance internal parts of the product. - The above-mentioned intake filter, air muffler and other products are general-purpose items that can work with other devices and will require a bushing or other part to adapt to the required connection diameter. Please contact us for details.
