Stationary type Dehumidifiers
The Large Capacity Series
Incorporating humidistat, they have such configuration as thin and compact.

RFB2200F1 / RFB2200F1-R / RFB3750F1 / RFB3750F1-R

RFB

Specifications

Dehumidifying only With air conditioning function Dehumidifying only With air conditioning function
RFB2200F1 RFB2200F1-R RFB3750F1 RFB3750F1-R
Dehumidifying capacity (50/60 Hz)※1 L/h 7.6/8.7 14.0/16.0 13.7/15.6
Cooling capacity
(50/60 Hz)※2
kW - 9.0/10.0 - 15.3/16.2

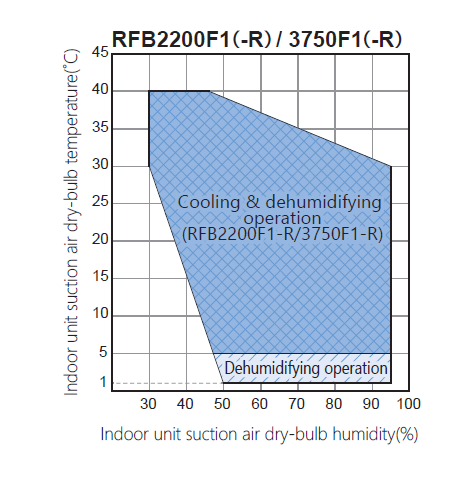

Operable temperature range (Indoor type) 1 ~ 40
Operable temperature range (Outdoor type)※3 - -5 ~ 43 - -5 ~ 43
Controllable temperature range - 5 ~ 40 - 5 ~ 40
Power specifications Power source V Three phase 200±10% 50/60 Hz
Electric current※1 A 9.1/9.7 13.1/15.1
Power consumption※1 kW 2.3/3.0 3.7/4.8
Power capacity kVA 4.9 5.6 7.7 8.0
Equipment details Compressor kW 2.2 3.75
Condenser, Evaporator Fin and tube type
Blower W 270 400
Air capacity m3/min 30 44/52
Refrigerant controlling method Electronic expansion valve
Refrigerant R410A
kg 1.5 2.1 2.8 3.8
Defroster Defrost thermostat
Ventilating fan Double suction multi blade type
External dimensions
(H × D × W)※4
mm 1750(1517)×400×650 1950(1745)×500×800
Product mass※5 kg 119 124 178 183
Protecting devices Compressor Over current relay
Discharge pipe thermostat (For overheat prevention), Fuse
Blower Internal thermostat, Fuse
Refrigerating circuit High pressure switch
Electric circuit Operation circuit fuse
Motor circuit fuse
Operation sound level※6 dB 54 59/68
  1. The numerical value indicated above is based on 25 ℃ of suction air temperature and 80% of relative humidity. The performance capacity is 90% or more of the indicated.
  2. The numerical value indicated above is based on 25 ℃ of suction air temperature, 80% of relative humidity and 30 ℃ of ambient temperature of an outdoor unit. The performance capacity is 90% or more of the indicated.
  3. In case of use of beyond operable temperature range, it cannot operate with cooler. (It may rise in room temperature due to force dehumidifying operation.)
  4. The figures in parentheses show dimensions before a plenum chamber is attached.
  5. Not including outdoor unit.
  6. The sound level is the value measured 1 meter away from the front and 1 meter high.
    ・ The plenum chamber shall be assembled and installed at the site.
    ・ The electric wiring, wiring of an outdoor unit and refrigeration piping must be arranged at the site.
